Max.Printing speed: 60-100m/min
Paper Thickness: 50-380gsm
Raw Material: PVC, PE Coated Paper
Printing Color: 4-6colors

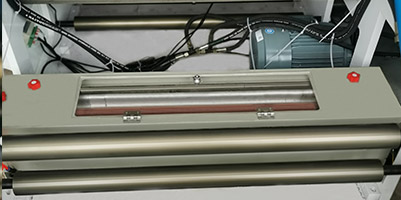

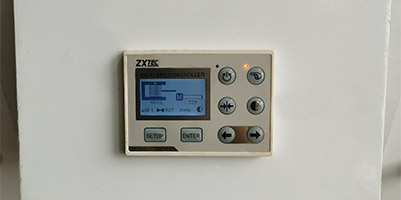

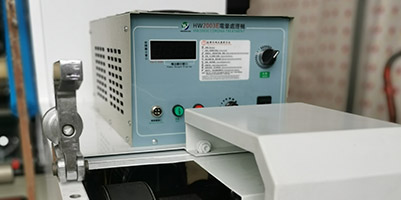

The NDS-1000B flexographic printing machine is an economical and environmentally friendly paper cup fan printing machine. This machine is suitable for single-side laminating and double side laminating paper, as well as PVC, OPP and other materials. It uses water-soluble ink with automatic correction and corona discharge equipment. Users can print different sizes and colors by changing the printing roller and mesh roller to meet the printing needs of a wide range of customers. We can customize printing machines with different specifications of 4-6 colors for customers.
|
Max.printing speed |
60-100m/min |
|
Printing color |
4-6(colors) |
|
Max.paper roll width |
980mm |
|
Max.printing width |
950mm |
|
Max.unwinding diameter |
1500mm |
|
Max.rewinding diameter |
1500mm |
|
Printing repeat |
175-500mm |
|
Registering precision |
土0.15mm |
|
Power |
8Kw |
|
Packing Dimensions |
3260×2160×2450mm |
